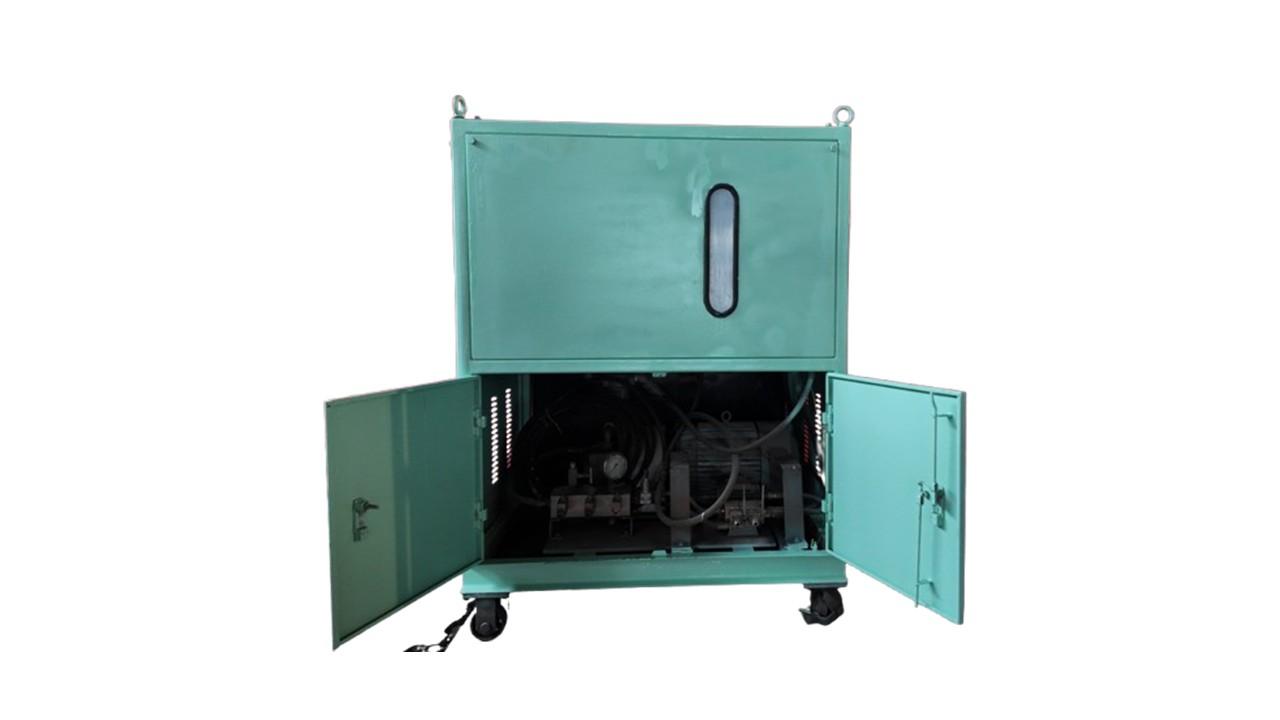

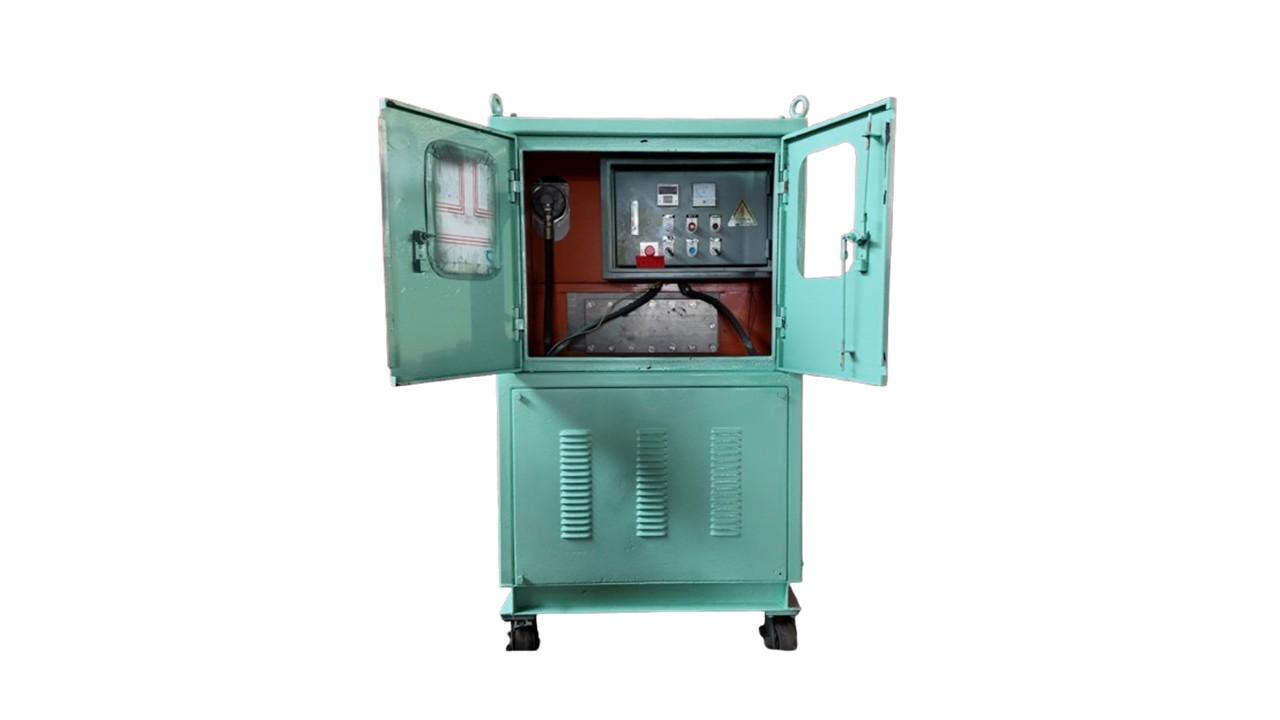

FNC-OF-024 :15 L/min
Specification of Pump
1. OIL PUMP
- TYPE: R 11.55 PISTON
- VOLUME: 15 L/min
- PRESSURE: 700bar
2. AIR-DRIVEN FLUID PUMP
- SERIAL NO.: 1298-738
- FLOW RATE: 0.45 L/min
- PRESSURE: 2,550bar (37,000 PSI)
3. MOTOR
- POWER: 11kW (25HP)
- POLE&FREQUENCY: 4P60Hz
4. RESERVOIR TANK
- VOLUME: 400L
5. HEATER
- Power Consumption: 30kW
6. OIL COOLER
- MODEL TYPE: SQI 015-2-220V
7. MANIFOLD BLOCK
- 1st PORT: 1/2" @ 1,000bar
- 2nd PORT: 1/2" @ 1,000bar
8. BASKET FILTER UNIT
- HOUSING: N/A
- BAG FILTER: N/A
9. FINE FILTER UNIT
- HOUSING: N/A
- ELEMENT FILTER: N/A
10. CONTROL PANEL
- INPUT: 440V x 3PH
- TYPE: NON WATERPROOF
- CONTROL: 220V
11. SIZE
- Size: L x W x H(mm): 1,340 x 1,800 x 890
12. WEIGHT(kg)
- 1,000kg
13. CONNECTOR
- SUPPLY: 1/2"
- RETURN: 1/2"
